    Класс WpfAnnotatedImagePrintManager
    В этом разделе
    Обеспечивает функциональность для печати ImageCollection с аннотациями. Также класс позволяет использовать WpfThumbnailViewer для предварительного просмотра печати.

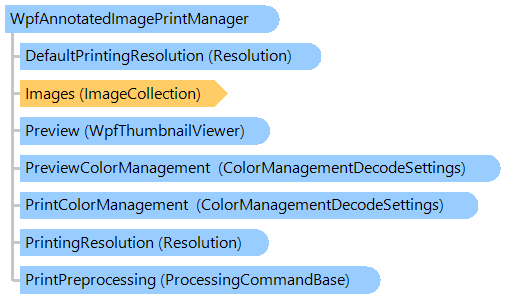

    Объектная модель
    ImageCollection WpfThumbnailViewer ColorManagementDecodeSettings ColorManagementDecodeSettings ProcessingCommandBase Resolution Resolution WpfAnnotatedImagePrintManager
    Синтаксис
    'Declaration

    Public Class WpfAnnotatedImagePrintManager
       Inherits Vintasoft.Imaging.Wpf.Print.WpfImagePrintManager


    public class WpfAnnotatedImagePrintManager : Vintasoft.Imaging.Wpf.Print.WpfImagePrintManager


    public __gc class WpfAnnotatedImagePrintManager : public Vintasoft.Imaging.Wpf.Print.WpfImagePrintManager*


    public ref class WpfAnnotatedImagePrintManager : public Vintasoft.Imaging.Wpf.Print.WpfImagePrintManager^


    Пример

    Вот C#/VB.NET код, который демонстрирует, как напечатать коллекцию изображений с аннотациями на принтере по умолчанию, каждое изображение из коллекции изображений будет напечатано в режиме BestFit:


    ''' <summary>
    ''' Prints the images on default printer.
    ''' </summary>
    ''' <param name="images">The images.</param>
    Public Sub PrintImagesOnDefaultPrinter(images As Vintasoft.Imaging.ImageCollection)
        ' create data controller
        Dim dataController As New Vintasoft.Imaging.Annotation.AnnotationDataController(images)
        ' create print manager
        Dim imagePrintManager As New Vintasoft.Imaging.Annotation.Wpf.Print.WpfAnnotatedImagePrintManager(dataController)
        ' specify that each image must be resized to fit within the page margins,
        ' image proportions is not changed
        imagePrintManager.PrintScaleMode = Vintasoft.Imaging.Print.PrintScaleMode.BestFit

        ' subscribe to the PrintingProgress event
        AddHandler imagePrintManager.PrintingProgress, New System.EventHandler(Of Vintasoft.Imaging.ProgressEventArgs)(AddressOf imagePrintManager_PrintingProgress)

        ' start print
        imagePrintManager.Print("Print task title")
    End Sub

    ''' <summary>
    ''' Printing is in progress.
    ''' </summary>
    Private Sub imagePrintManager_PrintingProgress(sender As Object, e As Vintasoft.Imaging.ProgressEventArgs)
        ' if printing is started
        If e.Progress = 0 Then
            System.Console.Write("Printing: ")
        End If

        ' write the printing progress
        System.Console.Write(String.Format("{0} ", e.Progress))

        ' if printing is finished
        If e.Progress = 100 Then
            Dim imagePrintManager As Vintasoft.Imaging.Annotation.Wpf.Print.WpfAnnotatedImagePrintManager = DirectCast(sender, Vintasoft.Imaging.Annotation.Wpf.Print.WpfAnnotatedImagePrintManager)
            ' unsubscribe from the PrintingProgress event
            RemoveHandler imagePrintManager.PrintingProgress, New System.EventHandler(Of Vintasoft.Imaging.ProgressEventArgs)(AddressOf imagePrintManager_PrintingProgress)
        End If
    End Sub



    /// <summary>
    /// Prints the images on default printer.
    /// </summary>
    /// <param name="images">The images.</param>
    public void PrintImagesOnDefaultPrinter(Vintasoft.Imaging.ImageCollection images)
    {
        // create data controller
        Vintasoft.Imaging.Annotation.AnnotationDataController dataController =
            new Vintasoft.Imaging.Annotation.AnnotationDataController(images);
        // create print manager
        Vintasoft.Imaging.Annotation.Wpf.Print.WpfAnnotatedImagePrintManager imagePrintManager =
            new Vintasoft.Imaging.Annotation.Wpf.Print.WpfAnnotatedImagePrintManager(dataController);
        // specify that each image must be resized to fit within the page margins,
        // image proportions is not changed
        imagePrintManager.PrintScaleMode = Vintasoft.Imaging.Print.PrintScaleMode.BestFit;

        // subscribe to the PrintingProgress event
        imagePrintManager.PrintingProgress +=
            new System.EventHandler<Vintasoft.Imaging.ProgressEventArgs>(imagePrintManager_PrintingProgress);

        // start print
        imagePrintManager.Print("Print task title");
    }

    /// <summary>
    /// Printing is in progress.
    /// </summary>
    private void imagePrintManager_PrintingProgress(object sender, Vintasoft.Imaging.ProgressEventArgs e)
    {
        // if printing is started
        if (e.Progress == 0)
            System.Console.Write("Printing: ");

        // write the printing progress
        System.Console.Write(string.Format("{0} ", e.Progress));

        // if printing is finished
        if (e.Progress == 100)
        {
            Vintasoft.Imaging.Annotation.Wpf.Print.WpfAnnotatedImagePrintManager imagePrintManager =
                (Vintasoft.Imaging.Annotation.Wpf.Print.WpfAnnotatedImagePrintManager)sender;
            // unsubscribe from the PrintingProgress event
            imagePrintManager.PrintingProgress -=
                new System.EventHandler<Vintasoft.Imaging.ProgressEventArgs>(imagePrintManager_PrintingProgress);
        }
    }



    Иерархия наследования

    System.Object
       Vintasoft.Imaging.Wpf.Print.WpfImagePrintManager
          Vintasoft.Imaging.Annotation.Wpf.Print.WpfAnnotatedImagePrintManager

    Требования

    Целевые платформы: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
