VintaSoft Imaging .NET SDK 14.0: Документация для .NET разработчика
Vintasoft.Imaging.Ocr Namespace / OcrEngine Class
Члены типа Объект Синтаксис Example Иерархия Требования Смотрите также
В этом разделе
    Класс OcrEngine
    В этом разделе
    Представляет абстрактный базовый класс для механизма оптического распознавания символов.

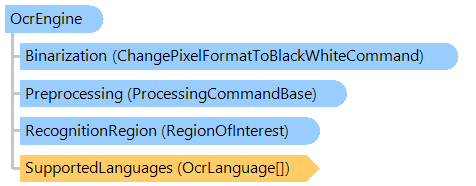

    Объектная модель
    OcrLanguage RegionOfInterest ChangePixelFormatToBlackWhiteCommand ProcessingCommandBase OcrEngine
    Синтаксис
    'Declaration

    Public MustInherit Class OcrEngine


    public abstract class OcrEngine


    public __gc abstract class OcrEngine


    public ref class OcrEngine abstract


    Пример

    Вот C#/VB.NET код, который демонстрирует, как распознавать текст на изображении с помощью механизма OCR Tesseract.


    ''' <summary>
    ''' Recognizes text in image using Tesseract OCR engine.
    ''' </summary>
    ''' <param name="filename">The name of file, which stores images with text.</param>
    ''' <param name="ocrLanguage">The language of recognizing text.</param>
    Public Shared Sub RecognizeTextInImageUsingTesseractOcrEngine(filename As String, ocrLanguage As Vintasoft.Imaging.Ocr.OcrLanguage)
        ' create an image collection
        Using images As New Vintasoft.Imaging.ImageCollection()
            ' add images from file to the image collection
            images.Add(filename)

            System.Console.WriteLine("Create Tesseract OCR engine...")
            ' create the Tesseract OCR engine
            Using tesseractOcr As New Vintasoft.Imaging.Ocr.Tesseract.TesseractOcr()
                System.Console.WriteLine("Initialize OCR engine...")
                ' init the Tesseract OCR engine
                tesseractOcr.Init(New Vintasoft.Imaging.Ocr.OcrEngineSettings(ocrLanguage))

                ' for each image in image collection
                For Each image As Vintasoft.Imaging.VintasoftImage In images
                    System.Console.WriteLine("Recognize the image...")

                    ' recognize text in image
                    Dim ocrResult As Vintasoft.Imaging.Ocr.Results.OcrPage = tesseractOcr.Recognize(image)

                    ' output the recognized text

                    System.Console.WriteLine("Page Text:")
                    System.Console.WriteLine(ocrResult.GetText())
                    System.Console.WriteLine()
                Next

                ' shutdown the Tesseract OCR engine
                tesseractOcr.Shutdown()
            End Using

            ' free images
            images.ClearAndDisposeItems()
        End Using
    End Sub



    /// <summary>
    /// Recognizes text in image using Tesseract OCR engine.
    /// </summary>
    /// <param name="filename">The name of file, which stores images with text.</param>
    /// <param name="ocrLanguage">The language of recognizing text.</param>
    public static void RecognizeTextInImageUsingTesseractOcrEngine(
        string filename,
        Vintasoft.Imaging.Ocr.OcrLanguage ocrLanguage)
    {
        // create an image collection
        using (Vintasoft.Imaging.ImageCollection images =
            new Vintasoft.Imaging.ImageCollection())
        {
            // add images from file to the image collection
            images.Add(filename);

            System.Console.WriteLine("Create Tesseract OCR engine...");
            // create the Tesseract OCR engine
            using (Vintasoft.Imaging.Ocr.Tesseract.TesseractOcr tesseractOcr =
                new Vintasoft.Imaging.Ocr.Tesseract.TesseractOcr())
            {
                System.Console.WriteLine("Initialize OCR engine...");
                // init the Tesseract OCR engine
                tesseractOcr.Init(new Vintasoft.Imaging.Ocr.OcrEngineSettings(ocrLanguage));

                // for each image in image collection
                foreach (Vintasoft.Imaging.VintasoftImage image in images)
                {
                    System.Console.WriteLine("Recognize the image...");

                    // recognize text in image
                    Vintasoft.Imaging.Ocr.Results.OcrPage ocrResult = tesseractOcr.Recognize(image);

                    // output the recognized text

                    System.Console.WriteLine("Page Text:");
                    System.Console.WriteLine(ocrResult.GetText());
                    System.Console.WriteLine();
                }

                // shutdown the Tesseract OCR engine
                tesseractOcr.Shutdown();
            }

            // free images
            images.ClearAndDisposeItems();
        }
    }



    Иерархия наследования
    Требования

    Целевые платформы: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5

    Смотрите также
