    Класс WpfPdfAnnotationTool
    В этом разделе
    Визуальный инструмент, позволяющий просматривать, заполнять и редактировать аннотации и поля интерактивных форм PDF документа.

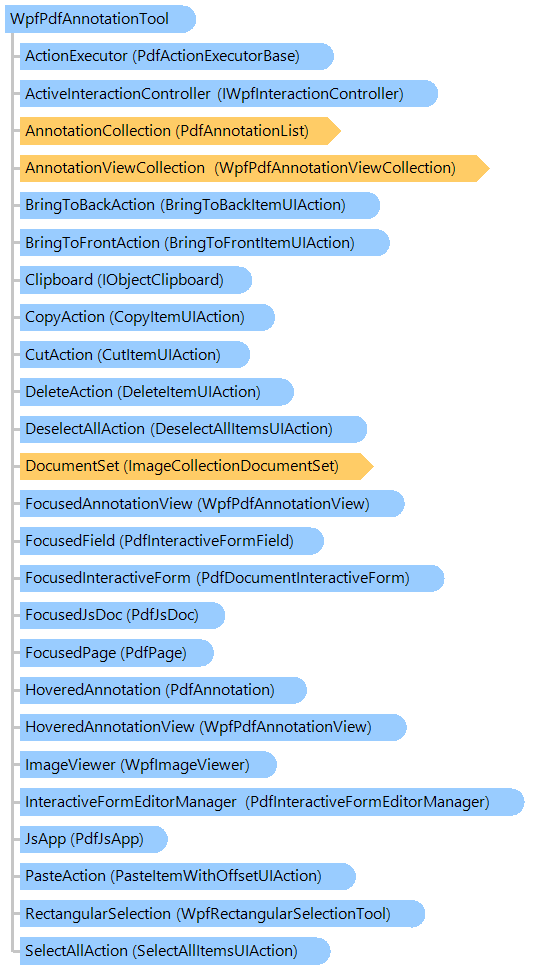

    Объектная модель
    PdfInteractiveFormEditorManager ImageCollectionDocumentSet PdfJsApp PdfJsDoc PdfActionExecutorBase PdfPage PdfAnnotationList WpfPdfAnnotationViewCollection PdfDocumentInteractiveForm PdfInteractiveFormField WpfPdfAnnotationView WpfPdfAnnotationView PdfAnnotation WpfRectangularSelectionTool CopyItemUIAction CutItemUIAction PasteItemWithOffsetUIAction DeleteItemUIAction SelectAllItemsUIAction DeselectAllItemsUIAction BringToBackItemUIAction BringToFrontItemUIAction IObjectClipboard IWpfInteractionController WpfImageViewer WpfPdfAnnotationTool
    Синтаксис
    'Declaration

    <ToolboxItemAttribute("ToolboxItemType = null", "ToolboxItemTypeName = ")>
    <DesignTimeVisibleAttribute("Visible = False")>
    <DefaultPropertyAttribute("Content")>
    <ContentPropertyAttribute("Content")>
    <LocalizabilityAttribute(None)>
    <StyleTypedPropertyAttribute("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")>
    <XmlLangPropertyAttribute("Name = Language")>
    <UsableDuringInitializationAttribute("Usable = True")>
    <RuntimeNamePropertyAttribute("Name = Name")>
    <UidPropertyAttribute()>
    <TypeDescriptionProviderAttribute("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")>
    <NameScopePropertyAttribute("Name = NameScope", "Type = System.Windows.NameScope")>
    Public Class WpfPdfAnnotationTool
       Inherits Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool


    [ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
    [DesignTimeVisible("Visible = False")]
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(None)]
    [StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
    [XmlLangProperty("Name = Language")]
    [UsableDuringInitialization("Usable = True")]
    [RuntimeNameProperty("Name = Name")]
    [UidProperty()]
    [TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
    [NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
    public class WpfPdfAnnotationTool : Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool


    [ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
    [DesignTimeVisible("Visible = False")]
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(None)]
    [StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
    [XmlLangProperty("Name = Language")]
    [UsableDuringInitialization("Usable = True")]
    [RuntimeNameProperty("Name = Name")]
    [UidProperty()]
    [TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
    [NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
    public __gc class WpfPdfAnnotationTool : public Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool*


    [ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
    [DesignTimeVisible("Visible = False")]
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(None)]
    [StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
    [XmlLangProperty("Name = Language")]
    [UsableDuringInitialization("Usable = True")]
    [RuntimeNameProperty("Name = Name")]
    [UidProperty()]
    [TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
    [NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
    public ref class WpfPdfAnnotationTool : public Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool^


    Пример

    Вот C#/VB.NET код, который демонстрирует, как создать инструмент PDF аннотации:


    ''' <summary>
    ''' Creates the PDF annotation tool.
    ''' </summary>
    ''' <param name="viewer">The image viewer.</param>
    Public Shared Function CreatePdfAnnotationTool(viewer As Vintasoft.Imaging.Wpf.UI.WpfImageViewer) As Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationTool
        ' create PdfAnnotationTool
        Dim pdfAnnotationTool As New Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationTool(True)
        pdfAnnotationTool.InteractionMode = Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationInteractionMode.Markup

        ' create an application action executor
        Dim applicationActionExecutor As New Vintasoft.Imaging.Pdf.PdfActionCompositeExecutor()
        ' add executor for PdfGotoAction to the application action executor
        applicationActionExecutor.Items.Add(New Vintasoft.Imaging.Pdf.Wpf.UI.WpfPdfGotoActionExecutor(viewer))
        ' add executor for PdfNamedAction to the application action executor
        applicationActionExecutor.Items.Add(New Vintasoft.Imaging.Pdf.Wpf.UI.WpfPdfNamedActionExecutor(viewer))
        ' add executor for PdfResetFormAction to the application action executor
        applicationActionExecutor.Items.Add(New Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationToolResetFormActionExecutor(pdfAnnotationTool))
        ' add executor for PdfAnnotationHideAction to the application action executor
        applicationActionExecutor.Items.Add(New Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationToolAnnotationHideActionExecutor(pdfAnnotationTool))
        ' add executor for PdfUriAction to the application action executor,
        ' executor is located in WpfPdfDemosCommonCode
        'applicationActionExecutor.Items.Add(new PdfUriActionExecutor());
        ' add executor for PdfLaunchAction to the application action executor,
        ' executor is located in WpfPdfDemosCommonCode
        'applicationActionExecutor.Items.Add(new PdfLaunchActionExecutor());
        ' add executor for PdfSubmitFormAction to the application action executor,
        ' executor is located in WpfPdfDemosCommonCode
        'applicationActionExecutor.Items.Add(new PdfSubmitActionExecutor(viewer));
        ' add the default executor (for PdfResetFormAction and PdfAnnotationHideAction)
        ' to the application action executor
        applicationActionExecutor.Items.Add(New Vintasoft.Imaging.Pdf.PdfActionExecutor())

        ' set the application action executor as action executor of PDF annotation tool
        pdfAnnotationTool.ActionExecutor = applicationActionExecutor

        Return pdfAnnotationTool
    End Function
    ''' <summary>
    ''' Creates the PDF annotation tool with JavaScript support.
    ''' </summary>
    ''' <param name="viewer">The image viewer.</param>
    Public Shared Function CreatePdfAnnotationToolWithJavaScriptSupport(viewer As Vintasoft.Imaging.Wpf.UI.WpfImageViewer) As Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationTool
        ' create PDF JavaScript application
        Dim jsApp As New Vintasoft.Imaging.Pdf.Wpf.UI.JavaScript.WpfPdfJsApp()
        ' add PDF documents, which are associated with images in viewer,
        ' to the document set of PDF JavaScript application
        jsApp.RegisterImageViewer(viewer)
        ' create PdfJavaScriptActionExecutor for PDF JavaScript application
        jsApp.ActionExecutor = New Vintasoft.Imaging.Pdf.JavaScript.PdfJavaScriptActionExecutor(jsApp, New Vintasoft.Imaging.Pdf.JavaScriptApi.PdfJsConsole())

        ' create PdfAnnotationTool
        Dim annotationTool As New Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationTool(jsApp, True)
        annotationTool.InteractionMode = Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationInteractionMode.Markup

        ' create an application action executor
        Dim applicationActionExecutor As New Vintasoft.Imaging.Pdf.PdfActionCompositeExecutor()
        ' add executor for PdfJavaScriptAction to the application action executor
        applicationActionExecutor.Items.Add(jsApp.ActionExecutor)
        ' add executor for PdfGotoAction to the application action executor
        applicationActionExecutor.Items.Add(New Vintasoft.Imaging.Pdf.Wpf.UI.WpfPdfGotoActionExecutor(viewer))
        ' add executor for PdfNamedAction to the application action executor
        applicationActionExecutor.Items.Add(New Vintasoft.Imaging.Pdf.Wpf.UI.WpfPdfNamedActionExecutor(viewer))
        ' add executor for PdfResetFormAction to the application action executor
        applicationActionExecutor.Items.Add(New Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationToolResetFormActionExecutor(annotationTool))
        ' add executor for PdfAnnotationHideAction to the application action executor
        applicationActionExecutor.Items.Add(New Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationToolAnnotationHideActionExecutor(annotationTool))
        ' add executor for PdfUriAction to the application action executor,
        ' executor is located in WpfPdfDemosCommonCode
        'applicationActionExecutor.Items.Add(new PdfUriActionExecutor());
        ' add executor for PdfLaunchAction to the application action executor,
        ' executor is located in WpfPdfDemosCommonCode
        'applicationActionExecutor.Items.Add(new PdfLaunchActionExecutor());
        ' add executor for PdfSubmitFormAction to the application action executor,
        ' executor is located in WpfPdfDemosCommonCode
        'applicationActionExecutor.Items.Add(new PdfSubmitActionExecutor(viewer));
        ' add the default executor (for PdfResetFormAction and PdfAnnotationHideAction)
        ' to the application action executor
        applicationActionExecutor.Items.Add(New Vintasoft.Imaging.Pdf.PdfActionExecutor())

        ' set the application action executor as action executor of PDF annotation tool
        annotationTool.ActionExecutor = applicationActionExecutor

        ' create a document-level actions executor
        Dim documentLevelActionsExecutor As New Vintasoft.Imaging.Pdf.PdfDocumentLevelActionsExecutor(jsApp)
        ' set the application action executor as action executor of the document-level actions executor
        documentLevelActionsExecutor.ActionExecutor = applicationActionExecutor

        Return annotationTool
    End Function



    /// <summary>
    /// Creates the PDF annotation tool.
    /// </summary>
    /// <param name="viewer">The image viewer.</param>
    public static Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationTool CreatePdfAnnotationTool(
        Vintasoft.Imaging.Wpf.UI.WpfImageViewer viewer)
    {
        // create PdfAnnotationTool
        Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationTool pdfAnnotationTool =
            new Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationTool(true);
        pdfAnnotationTool.InteractionMode = Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationInteractionMode.Markup;

        // create an application action executor
        Vintasoft.Imaging.Pdf.PdfActionCompositeExecutor applicationActionExecutor =
            new Vintasoft.Imaging.Pdf.PdfActionCompositeExecutor();
        // add executor for PdfGotoAction to the application action executor
        applicationActionExecutor.Items.Add(new Vintasoft.Imaging.Pdf.Wpf.UI.WpfPdfGotoActionExecutor(viewer));
        // add executor for PdfNamedAction to the application action executor
        applicationActionExecutor.Items.Add(new Vintasoft.Imaging.Pdf.Wpf.UI.WpfPdfNamedActionExecutor(viewer));
        // add executor for PdfResetFormAction to the application action executor
        applicationActionExecutor.Items.Add(
            new Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationToolResetFormActionExecutor(pdfAnnotationTool));
        // add executor for PdfAnnotationHideAction to the application action executor
        applicationActionExecutor.Items.Add(
            new Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationToolAnnotationHideActionExecutor(pdfAnnotationTool));
        // add executor for PdfUriAction to the application action executor,
        // executor is located in WpfPdfDemosCommonCode
        //applicationActionExecutor.Items.Add(new PdfUriActionExecutor());
        // add executor for PdfLaunchAction to the application action executor,
        // executor is located in WpfPdfDemosCommonCode
        //applicationActionExecutor.Items.Add(new PdfLaunchActionExecutor());
        // add executor for PdfSubmitFormAction to the application action executor,
        // executor is located in WpfPdfDemosCommonCode
        //applicationActionExecutor.Items.Add(new PdfSubmitActionExecutor(viewer));
        // add the default executor (for PdfResetFormAction and PdfAnnotationHideAction)
        // to the application action executor
        applicationActionExecutor.Items.Add(new Vintasoft.Imaging.Pdf.PdfActionExecutor());

        // set the application action executor as action executor of PDF annotation tool
        pdfAnnotationTool.ActionExecutor = applicationActionExecutor;

        return pdfAnnotationTool;
    }
    /// <summary>
    /// Creates the PDF annotation tool with JavaScript support.
    /// </summary>
    /// <param name="viewer">The image viewer.</param>
    public static Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationTool CreatePdfAnnotationToolWithJavaScriptSupport(
        Vintasoft.Imaging.Wpf.UI.WpfImageViewer viewer)
    {
        // create PDF JavaScript application
        Vintasoft.Imaging.Pdf.Wpf.UI.JavaScript.WpfPdfJsApp jsApp =
            new Vintasoft.Imaging.Pdf.Wpf.UI.JavaScript.WpfPdfJsApp();
        // add PDF documents, which are associated with images in viewer,
        // to the document set of PDF JavaScript application
        jsApp.RegisterImageViewer(viewer);
        // create PdfJavaScriptActionExecutor for PDF JavaScript application
        jsApp.ActionExecutor = new Vintasoft.Imaging.Pdf.JavaScript.PdfJavaScriptActionExecutor(
            jsApp, new Vintasoft.Imaging.Pdf.JavaScriptApi.PdfJsConsole());

        // create PdfAnnotationTool
        Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationTool annotationTool =
            new Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationTool(jsApp, true);
        annotationTool.InteractionMode = Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationInteractionMode.Markup;

        // create an application action executor
        Vintasoft.Imaging.Pdf.PdfActionCompositeExecutor applicationActionExecutor =
            new Vintasoft.Imaging.Pdf.PdfActionCompositeExecutor();
        // add executor for PdfJavaScriptAction to the application action executor
        applicationActionExecutor.Items.Add(jsApp.ActionExecutor);
        // add executor for PdfGotoAction to the application action executor
        applicationActionExecutor.Items.Add(new Vintasoft.Imaging.Pdf.Wpf.UI.WpfPdfGotoActionExecutor(viewer));
        // add executor for PdfNamedAction to the application action executor
        applicationActionExecutor.Items.Add(new Vintasoft.Imaging.Pdf.Wpf.UI.WpfPdfNamedActionExecutor(viewer));
        // add executor for PdfResetFormAction to the application action executor
        applicationActionExecutor.Items.Add(
            new Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationToolResetFormActionExecutor(annotationTool));
        // add executor for PdfAnnotationHideAction to the application action executor
        applicationActionExecutor.Items.Add(
            new Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationToolAnnotationHideActionExecutor(annotationTool));
        // add executor for PdfUriAction to the application action executor,
        // executor is located in WpfPdfDemosCommonCode
        //applicationActionExecutor.Items.Add(new PdfUriActionExecutor());
        // add executor for PdfLaunchAction to the application action executor,
        // executor is located in WpfPdfDemosCommonCode
        //applicationActionExecutor.Items.Add(new PdfLaunchActionExecutor());
        // add executor for PdfSubmitFormAction to the application action executor,
        // executor is located in WpfPdfDemosCommonCode
        //applicationActionExecutor.Items.Add(new PdfSubmitActionExecutor(viewer));
        // add the default executor (for PdfResetFormAction and PdfAnnotationHideAction)
        // to the application action executor
        applicationActionExecutor.Items.Add(new Vintasoft.Imaging.Pdf.PdfActionExecutor());

        // set the application action executor as action executor of PDF annotation tool
        annotationTool.ActionExecutor = applicationActionExecutor;

        // create a document-level actions executor
        Vintasoft.Imaging.Pdf.PdfDocumentLevelActionsExecutor documentLevelActionsExecutor =
           new Vintasoft.Imaging.Pdf.PdfDocumentLevelActionsExecutor(jsApp);
        // set the application action executor as action executor of the document-level actions executor
        documentLevelActionsExecutor.ActionExecutor = applicationActionExecutor;

        return annotationTool;
    }



    Иерархия наследования

    System.Object
       System.Windows.Threading.DispatcherObject
          System.Windows.DependencyObject
             System.Windows.Media.Visual
                System.Windows.UIElement
                   System.Windows.FrameworkElement
                      System.Windows.Controls.Control
                         System.Windows.Controls.ContentControl
                            Vintasoft.Imaging.Wpf.UI.VisualTools.WpfVisualTool
                               Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool
                                  Vintasoft.Imaging.Pdf.Wpf.UI.Annotations.WpfPdfAnnotationTool

    Требования

    Целевые платформы: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5

    Смотрите также
