Класс WpfTextOverlayTool

В этом разделе

Визуальный инструмент для отображения статических текстовых графических объектов в просмотрщике изображений.

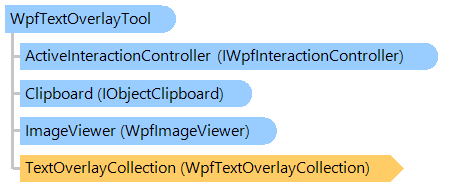

Объектная модель

Синтаксис

Visual Basic
C#
Управляемые расширения для C++
C++/CLI

'Declaration

<ToolboxItemAttribute("ToolboxItemType = null", "ToolboxItemTypeName = ")>
<DesignTimeVisibleAttribute("Visible = False")>
<DefaultPropertyAttribute("Content")>
<ContentPropertyAttribute("Content")>
<LocalizabilityAttribute(None)>
<StyleTypedPropertyAttribute("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")>
<XmlLangPropertyAttribute("Name = Language")>
<UsableDuringInitializationAttribute("Usable = True")>
<RuntimeNamePropertyAttribute("Name = Name")>
<UidPropertyAttribute()>
<TypeDescriptionProviderAttribute("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")>
<NameScopePropertyAttribute("Name = NameScope", "Type = System.Windows.NameScope")>
Public Class WpfTextOverlayTool
   Inherits Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool

[ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
[DesignTimeVisible("Visible = False")]
[DefaultProperty("Content")]
[ContentProperty("Content")]
[Localizability(None)]
[StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
[XmlLangProperty("Name = Language")]
[UsableDuringInitialization("Usable = True")]
[RuntimeNameProperty("Name = Name")]
[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public class WpfTextOverlayTool : Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool

[ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
[DesignTimeVisible("Visible = False")]
[DefaultProperty("Content")]
[ContentProperty("Content")]
[Localizability(None)]
[StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
[XmlLangProperty("Name = Language")]
[UsableDuringInitialization("Usable = True")]
[RuntimeNameProperty("Name = Name")]
[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public __gc class WpfTextOverlayTool : public Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool*

[ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
[DesignTimeVisible("Visible = False")]
[DefaultProperty("Content")]
[ContentProperty("Content")]
[Localizability(None)]
[StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
[XmlLangProperty("Name = Language")]
[UsableDuringInitialization("Usable = True")]
[RuntimeNameProperty("Name = Name")]
[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public ref class WpfTextOverlayTool : public Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool^

Пример

Вот C#/VB.NET код, который демонстрирует, как отобразить статический текст в просмотрщике изображений.

VB.NET


''' <summary>
''' Shows the static text in image viewer.
''' </summary>
''' <param name="viewer">An image viewer.</param>
Public Shared Sub ShowStaticTextExample(viewer As Vintasoft.Imaging.Wpf.UI.WpfImageViewer)
    ' create the text overlay visual tool
    Dim textOverlayTool As New Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlayTool()

    ' text anchor
    Dim textAnchor As Vintasoft.Imaging.AnchorType = Vintasoft.Imaging.AnchorType.Bottom Or Vintasoft.Imaging.AnchorType.Left Or Vintasoft.Imaging.AnchorType.Right Or Vintasoft.Imaging.AnchorType.Top

    ' create the text overlay object
    Dim textOverlay As New Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlay(textAnchor, "Text Overlay Example", New System.Windows.Media.Typeface("Arial"), 24, New System.Windows.Media.SolidColorBrush(System.Windows.Media.Color.FromArgb(255, 20, 200, 20)))

    ' add text overlay object to the text overlay collection of text overlay visual tool
    textOverlayTool.TextOverlayCollection.Add(textOverlay)

    ' set visual tool as the active visual tool of image viewer
    viewer.VisualTool = textOverlayTool
End Sub


/// <summary>
/// Shows the static text in image viewer.
/// </summary>
/// <param name="viewer">An image viewer.</param>
public static void ShowStaticTextExample(Vintasoft.Imaging.Wpf.UI.WpfImageViewer viewer)
{
    // create the text overlay visual tool
    Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlayTool textOverlayTool =
        new Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlayTool();

    // text anchor
    Vintasoft.Imaging.AnchorType textAnchor =
        Vintasoft.Imaging.AnchorType.Bottom |
        Vintasoft.Imaging.AnchorType.Left |
        Vintasoft.Imaging.AnchorType.Right |
        Vintasoft.Imaging.AnchorType.Top;

    // create the text overlay object
    Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlay textOverlay =
        new Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlay(
            textAnchor,
            "Text Overlay Example",
            new System.Windows.Media.Typeface("Arial"),
            24,
            new System.Windows.Media.SolidColorBrush(System.Windows.Media.Color.FromArgb(255, 20, 200, 20)));

    // add text overlay object to the text overlay collection of text overlay visual tool
    textOverlayTool.TextOverlayCollection.Add(textOverlay);

    // set visual tool as the active visual tool of image viewer
    viewer.VisualTool = textOverlayTool;
}

Иерархия наследования

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Media.Visual
            System.Windows.UIElement
               System.Windows.FrameworkElement
                  System.Windows.Controls.Control
                     System.Windows.Controls.ContentControl
                        Vintasoft.Imaging.Wpf.UI.VisualTools.WpfVisualTool
                           Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool
                              Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool
                                 Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlayTool

Требования

Целевые платформы: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5

Смотрите также

Справочник

Члены типа WpfTextOverlayTool
Пространство имен Vintasoft.Imaging.Wpf.UI.VisualTools

TextOverlayCollection
