VintaSoft Imaging .NET SDK 14.0: Документация для .NET разработчика
Vintasoft.Imaging.ImageProcessing Namespace / OverlayWithBlendingCommand Class
Члены типа Объект Синтаксис Example Иерархия Требования Смотрите также
В этом разделе
    Класс OverlayWithBlendingCommand
    В этом разделе
    Накладывает изображение поверх другого изображения со смешиванием цветов.

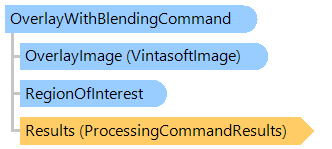

    Объектная модель
    VintasoftImage RegionOfInterest ProcessingCommandResults OverlayWithBlendingCommand
    Синтаксис
    'Declaration

    Public Class OverlayWithBlendingCommand
       Inherits ProcessingCommandWithRegion


    public class OverlayWithBlendingCommand : ProcessingCommandWithRegion


    public __gc class OverlayWithBlendingCommand : public ProcessingCommandWithRegion*


    public ref class OverlayWithBlendingCommand : public ProcessingCommandWithRegion^


    Пример

    Вот C#/VB.NET код, который демонстрирует, как загрузить изображение с диска, наложить на него другое изображение и сохранить результат в новом файле изображения.


    Class OverlayWithBlendingCommandExample
        Public Sub ProcessImage()
            ' [ do not forget to set your image file path here! ]
            ' create an image collection
            Using images As New Vintasoft.Imaging.ImageCollection()
                ' add image to the image collection
                images.Add("Flower.jpg")
                Try
                    Using overlayImage As New Vintasoft.Imaging.VintasoftImage("Background.jpg")
                        ' create the image processing command
                        Dim command As New Vintasoft.Imaging.ImageProcessing.OverlayWithBlendingCommand()
                        command.OverlayImage = overlayImage
                        command.BlendingMode = Vintasoft.Imaging.BlendingMode.Multiply

                        ' subscribe to progress event of image processing command
                        AddHandler command.Progress, New System.EventHandler(Of Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)(AddressOf command_Progress)

                        Try
                            ' for each image in image collection
                            For Each image As Vintasoft.Imaging.VintasoftImage In images
                                ' apply the image processing command to the image
                                command.ExecuteInPlace(image)
                            Next
                        Catch ex As Vintasoft.Imaging.ImageProcessing.ImageProcessingException
                            ' show error message
                            System.Windows.Forms.MessageBox.Show(ex.Message)
                            Return
                        End Try

                        ' save the processed image collection to a new TIFF file
                        images.SaveSync("processed-image.tif")
                    End Using
                Finally
                    images.ClearAndDisposeItems()
                End Try
            End Using
        End Sub

        Private Sub command_Progress(sender As Object, e As Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)
            ' update progress info using e.Progress property
            ' ...

            ' cancel execution of command using e.Cancel property if necessary
            ' ...
        End Sub
    End Class



    class OverlayWithBlendingCommandExample
    {
        public void ProcessImage()
        {
            // [ do not forget to set your image file path here! ]
            // create an image collection
            using (Vintasoft.Imaging.ImageCollection images = new Vintasoft.Imaging.ImageCollection())
            {
                // add image to the image collection
                images.Add("Flower.jpg");
                try
                {
                    using (Vintasoft.Imaging.VintasoftImage overlayImage = new Vintasoft.Imaging.VintasoftImage("Background.jpg"))
                    {
                        // create the image processing command
                        Vintasoft.Imaging.ImageProcessing.OverlayWithBlendingCommand command =
                        new Vintasoft.Imaging.ImageProcessing.OverlayWithBlendingCommand();
                        command.OverlayImage = overlayImage;
                        command.BlendingMode = Vintasoft.Imaging.BlendingMode.Multiply;

                        // subscribe to progress event of image processing command
                        command.Progress +=
                            new System.EventHandler<Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs>(command_Progress);

                        try
                        {
                            // for each image in image collection
                            foreach (Vintasoft.Imaging.VintasoftImage image in images)
                            {
                                // apply the image processing command to the image
                                command.ExecuteInPlace(image);
                            }
                        }
                        catch (Vintasoft.Imaging.ImageProcessing.ImageProcessingException ex)
                        {
                            // show error message
                            System.Windows.Forms.MessageBox.Show(ex.Message);
                            return;
                        }

                        // save the processed image collection to a new TIFF file
                        images.SaveSync("processed-image.tif");
                    }
                }
                finally
                {
                    images.ClearAndDisposeItems();
                }
            }
        }

        void command_Progress(object sender, Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs e)
        {
            // update progress info using e.Progress property
            // ...

            // cancel execution of command using e.Cancel property if necessary
            // ...
        }
    }



    Иерархия наследования

    System.Object
       Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase
          Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
             Vintasoft.Imaging.ImageProcessing.OverlayWithBlendingCommand

    Требования

    Целевые платформы: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
