VintaSoft Twain .NET SDK 15.1: Руководство для .NET разработчика
Vintasoft.Sane Namespace / SaneLocalDevice Class
Члены типа Объект Синтаксис Example Иерархия Требования Смотрите также
В этом разделе
    Класс SaneLocalDevice
    В этом разделе
    Представляет локальное SANE устройство.

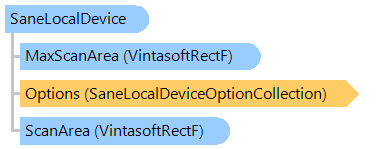

    Объектная модель
    SaneLocalDeviceOptionCollection VintasoftRectF VintasoftRectF SaneLocalDevice
    Синтаксис
    'Declaration

    Public NotInheritable Class SaneLocalDevice


    public sealed class SaneLocalDevice


    public __gc __sealed class SaneLocalDevice


    public ref class SaneLocalDevice sealed


    Пример

    Вот C#/VB.NET код, который демонстрирует, как синхронно получать изображения с устройства SANE.


    ''' <summary>
    ''' Synchronously acquire images from SANE device.
    ''' </summary>
    Public Sub SynchronouslyAcquireImagesFromSaneDevice()
            ' create SANE device manager
            Using deviceManager As New Vintasoft.Sane.SaneLocalDeviceManager()
                    ' open SANE device manager
                    deviceManager.Open()

                    ' get count of SANE devices
                    Dim deviceCount As Integer = deviceManager.Devices.Count
                    If deviceCount = 0 Then
                            System.Console.WriteLine("Devices are not found.")
                            Return
                    End If

                    ' select the first SANE device
                    Dim device As Vintasoft.Sane.SaneLocalDevice = deviceManager.Devices(0)

                    ' open SANE device
                    device.Open()

                    Dim imageIndex As Integer = 0
                    Dim acquiredImage As Vintasoft.Sane.SaneAcquiredImage
                    Do
                            Try
                                    ' acquire image from SANE device
                                    acquiredImage = device.AcquireImageSync()
                                    ' if image is received
                                    If acquiredImage IsNot Nothing Then
                                            imageIndex += 1
                                            Dim filename As String = String.Format("scannedImage-{0}.png", imageIndex)
                                            If System.IO.File.Exists(filename) Then
                                                    System.IO.File.Delete(filename)
                                            End If

                                            acquiredImage.Save(filename)

                                            System.Console.WriteLine(String.Format("Acquired image is saved to a file '{0}'.", filename))
                                    Else
                                            ' if image is not received
                                            System.Console.WriteLine("Scan is completed.")
                                            Exit Try
                                    End If
                            Catch ex As System.Exception
                                    System.Console.WriteLine(String.Format("Scan is failed: {0}", ex.Message))
                                    Exit Try
                            End Try
                    ' while device has more images to scan
                    Loop While device.HasMoreImagesToScan

                    ' close SANE device
                    device.Close()

                    ' close SANE device manager
                    deviceManager.Close()
            End Using

            System.Console.ReadLine()
    End Sub



    /// <summary>
    /// Synchronously acquire images from SANE device.
    /// </summary>
    public void SynchronouslyAcquireImagesFromSaneDevice()
    {
        // create SANE device manager
        using (Vintasoft.Sane.SaneLocalDeviceManager deviceManager = new Vintasoft.Sane.SaneLocalDeviceManager())
        {
            // open SANE device manager
            deviceManager.Open();

            // get count of SANE devices
            int deviceCount = deviceManager.Devices.Count;
            if (deviceCount == 0)
            {
                System.Console.WriteLine("Devices are not found.");
                return;
            }

            // select the first SANE device
            Vintasoft.Sane.SaneLocalDevice device = deviceManager.Devices[0];

            // open SANE device
            device.Open();

            int imageIndex = 0;
            Vintasoft.Sane.SaneAcquiredImage acquiredImage;
            do
            {
                try
                {
                    // acquire image from SANE device
                    acquiredImage = device.AcquireImageSync();
                    // if image is received
                    if (acquiredImage != null)
                    {
                        imageIndex++;
                        string filename = string.Format("scannedImage-{0}.png", imageIndex);
                        if (System.IO.File.Exists(filename))
                            System.IO.File.Delete(filename);

                        acquiredImage.Save(filename);

                        System.Console.WriteLine(string.Format("Acquired image is saved to a file '{0}'.", filename));
                    }
                    // if image is not received
                    else
                    {
                        System.Console.WriteLine("Scan is completed.");
                        break;
                    }
                }
                catch (System.Exception ex)
                {
                    System.Console.WriteLine(string.Format("Scan is failed: {0}", ex.Message));
                    break;
                }
            }
            // while device has more images to scan
            while (device.HasMoreImagesToScan);

            // close SANE device
            device.Close();

            // close SANE device manager
            deviceManager.Close();
        }

        System.Console.ReadLine();
    }



    Иерархия наследования

    System.Object
       Vintasoft.Sane.SaneLocalDevice

    Требования

    Целевые платформы: .NET 8; .NET 7; .NET 6

    Смотрите также
