VintaSoft Imaging .NET SDK 14.1: Документация для .NET разработчика
Vintasoft.Imaging.Pdf.Tree.InteractiveForms Namespace / PdfInteractiveFormField Class
    Класс PdfInteractiveFormField
    Предоставляет информацию об интерактивном поле формы.

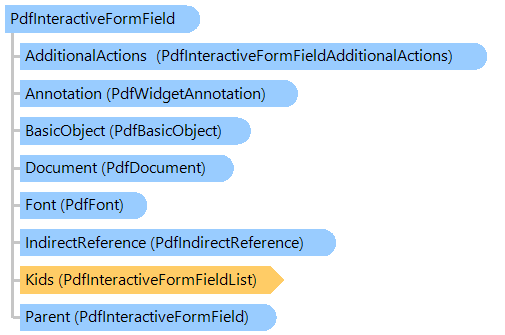

    Объектная модель
    PdfFont PdfInteractiveFormFieldAdditionalActions PdfInteractiveFormField PdfInteractiveFormField PdfWidgetAnnotation PdfInteractiveFormFieldList PdfDocument PdfIndirectReference PdfBasicObject
    Синтаксис
    'Declaration

    Public Class PdfInteractiveFormField
       Inherits Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase



    Ремарки

    Интерактивное поле формы - это узел дерева интерактивной формы. Узел поля может быть конечным и не конечным (IsTerminalField):

    • Конечное поле содержит значение поля, значение поля по умолчанию, свойства поля и аннотацию виджета (Annotation), которая описывает внешний вид поля интерактивной формы.
    • Неконечное поле используется для создания группы полей интерактивной формы (Kids).

    Интерактивные формы дополнительно поддерживают четыре специальных типа действий:
    Поле интерактивной формы и аннотация могут включать свойство, которое указывает дополнительные действия (AdditionalActions, AdditionalActions), которые расширяют набор событий, которые могут инициировать выполнение действие. Это событие триггера может использоваться для создания алгоритмов проверки, вычисляемых полей и логики взаимодействия настраиваемых полей.

    Пример

    Вот пример, показывающий, как создать PDF документ с вычисляемым текстовым полем:

    ''' <summary>
    ''' Creates a PDF document with calculated interactive form field.
    ''' </summary>
    ''' <param name="filename">The filename.</param>
    Public Shared Sub CreateDocumentWithCalculatedInteractiveFormField(filename As String)
        ' create PDF document
        Using document As New Vintasoft.Imaging.Pdf.PdfDocument()
            ' create interactive form in PDF document
            document.InteractiveForm = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfDocumentInteractiveForm(document)

            ' specify that the viewer application must construct appearance streams and
            ' appearance properties for all widget annotations
            document.InteractiveForm.NeedAppearances = True

            ' font and font size
            Dim fontSize As Single = 12
            Dim font As Vintasoft.Imaging.Pdf.Tree.Fonts.PdfFont = document.FontManager.GetStandardFont(Vintasoft.Imaging.Pdf.Tree.Fonts.PdfStandardFontType.TimesRoman)

            ' create an empty page
            Dim page As New Vintasoft.Imaging.Pdf.Tree.PdfPage(document, Vintasoft.Imaging.PaperSizeKind.A4)
            ' add page to the document
            document.Pages.Add(page)

            Dim width As Single = 60
            Dim height As Single = 40
            ' create a rectangle that defines the object (first field) position on PDF page
            Dim rect As New System.Drawing.RectangleF((page.Size.Width - width * 5) / 2, ((page.Size.Height - height) / 3) * 2, width, height)

            ' open PdfGraphics on page
            Using graphics As Vintasoft.Imaging.Pdf.Drawing.PdfGraphics = page.GetGraphics()
                ' create calculator field: group of three fields
                Dim calculator As New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormField(document, "Calculator")
                calculator.SetTextDefaultAppearance(font, fontSize * 1.5F, System.Drawing.Color.Black)
                calculator.TextQuadding = Vintasoft.Imaging.Pdf.Tree.InteractiveForms.TextQuaddingType.Centered

                ' create the border style
                Dim borderStyle As New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyle(document)
                borderStyle.Style = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Inset
                borderStyle.Width = 1

                ' create the appearance characteristics
                Dim appearanceCharacteristics As New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationAppearanceCharacteristics(document)
                appearanceCharacteristics.BorderColor = System.Drawing.Color.Gray

                ' create the left text box
                Dim textField As New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField(document, "Left", rect, "2")
                textField.DefaultValue = textField.Value
                textField.Annotation.BorderStyle = borderStyle
                textField.Annotation.AppearanceCharacteristics = appearanceCharacteristics
                ' add the left text box to the calculator
                calculator.Kids.Add(textField)

                ' update the rectangle that defines the object position on PDF page
                rect.X += rect.Width

                ' draw the symbol '+' on the page
                graphics.DrawString("+", font, fontSize * 1.5F, New Vintasoft.Imaging.Pdf.Drawing.PdfBrush(System.Drawing.Color.Black), rect, Vintasoft.Imaging.Pdf.Drawing.PdfContentAlignment.Center, _
                    False)

                ' update the rectangle that defines the object position on PDF page
                rect.X += rect.Width

                ' create the right text box
                textField = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField(document, "Right", rect, "3")
                textField.DefaultValue = textField.Value
                textField.Annotation.BorderStyle = borderStyle
                textField.Annotation.AppearanceCharacteristics = appearanceCharacteristics
                ' add the right text box to the calculator
                calculator.Kids.Add(textField)

                ' update the rectangle that defines the object position on PDF page
                rect.X += rect.Width

                ' draw the symbol '=' on the page
                graphics.DrawString("=", font, fontSize * 1.5F, New Vintasoft.Imaging.Pdf.Drawing.PdfBrush(System.Drawing.Color.Black), rect, Vintasoft.Imaging.Pdf.Drawing.PdfContentAlignment.Center, _
                    False)

                ' create the calculator program written on JavaScript
                Dim javaScriptCode As New System.Text.StringBuilder()
                javaScriptCode.Append("var left = this.getField('Calculator.Left');")
                javaScriptCode.Append("var right = this.getField('Calculator.Right');")
                javaScriptCode.Append("var result = this.getField('Calculator.Result');")
                javaScriptCode.Append("result.value = left.value + right.value;")
                Dim calculatorProgram As New Vintasoft.Imaging.Pdf.Tree.PdfJavaScriptAction(document, javaScriptCode.ToString())

                ' update the rectangle that defines the object position on PDF page
                rect.X += rect.Width

                ' create the result text box
                textField = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField(document, "Result", rect)
                textField.IsReadOnly = True
                textField.Annotation.BorderStyle = borderStyle
                textField.Annotation.AppearanceCharacteristics = appearanceCharacteristics
                ' set a program that will calculate value of result field
                textField.AdditionalActions = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormFieldAdditionalActions(document)
                textField.AdditionalActions.Calculate = calculatorProgram
                ' specify that calcualtor program must be executed when page is opened
                textField.Annotation.AdditionalActions.PageOpen = calculatorProgram
                ' add the result text box to the calculator
                calculator.Kids.Add(textField)

                ' add result field to the calculated fields (calcualtion order)
                ' of the document interactive form fields
                document.InteractiveForm.CalculationOrder = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormFieldList(document)
                document.InteractiveForm.CalculationOrder.Add(textField)

                ' add field group to the document
                document.InteractiveForm.Fields.Add(calculator)

                ' add annotations, associated with field group, to the page
                page.Annotations = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document)
                page.Annotations.AddRange(calculator.GetAnnotations())

                ' update appearance of field group
                calculator.UpdateAppearance()
            End Using

            ' save the document
            document.Save(filename)
        End Using
    End Sub


    /// <summary>
    /// Creates a PDF document with calculated interactive form field.
    /// </summary>
    /// <param name="filename">The filename.</param>
    public static void CreateDocumentWithCalculatedInteractiveFormField(string filename)
    {
        // create PDF document
        using (Vintasoft.Imaging.Pdf.PdfDocument document = new Vintasoft.Imaging.Pdf.PdfDocument())
        {
            // create interactive form in PDF document
            document.InteractiveForm =
                new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfDocumentInteractiveForm(document);

            // specify that the viewer application must construct appearance streams and
            // appearance properties for all widget annotations
            document.InteractiveForm.NeedAppearances = true;

            // font and font size
            float fontSize = 12;
            Vintasoft.Imaging.Pdf.Tree.Fonts.PdfFont font =
                document.FontManager.GetStandardFont(Vintasoft.Imaging.Pdf.Tree.Fonts.PdfStandardFontType.TimesRoman);

            // create an empty page
            Vintasoft.Imaging.Pdf.Tree.PdfPage page = new Vintasoft.Imaging.Pdf.Tree.PdfPage(
                document, Vintasoft.Imaging.PaperSizeKind.A4);
            // add page to the document
            document.Pages.Add(page);

            float width = 60;
            float height = 40;
            // create a rectangle that defines the object (first field) position on PDF page
            System.Drawing.RectangleF rect = new System.Drawing.RectangleF(
                (page.Size.Width - width * 5) / 2,
                ((page.Size.Height - height) / 3) * 2,
                width, height);

            // open PdfGraphics on page
            using (Vintasoft.Imaging.Pdf.Drawing.PdfGraphics graphics = page.GetGraphics())
            {
                // create calculator field: group of three fields
                Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormField calculator =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormField(document, "Calculator");
                calculator.SetTextDefaultAppearance(font, fontSize * 1.5f, System.Drawing.Color.Black);
                calculator.TextQuadding = Vintasoft.Imaging.Pdf.Tree.InteractiveForms.TextQuaddingType.Centered;

                // create the border style
                Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyle borderStyle =
                    new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyle(document);
                borderStyle.Style = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Inset;
                borderStyle.Width = 1;

                // create the appearance characteristics
                Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationAppearanceCharacteristics appearanceCharacteristics =
                    new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationAppearanceCharacteristics(document);
                appearanceCharacteristics.BorderColor = System.Drawing.Color.Gray;

                // create the left text box
                Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField textField =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField(document, "Left", rect, "2");
                textField.DefaultValue = textField.Value;
                textField.Annotation.BorderStyle = borderStyle;
                textField.Annotation.AppearanceCharacteristics = appearanceCharacteristics;
                // add the left text box to the calculator
                calculator.Kids.Add(textField);

                // update the rectangle that defines the object position on PDF page
                rect.X += rect.Width;

                // draw the symbol '+' on the page
                graphics.DrawString("+", font, fontSize * 1.5f,
                    new Vintasoft.Imaging.Pdf.Drawing.PdfBrush(System.Drawing.Color.Black), rect,
                    Vintasoft.Imaging.Pdf.Drawing.PdfContentAlignment.Center, false);

                // update the rectangle that defines the object position on PDF page
                rect.X += rect.Width;

                // create the right text box
                textField = new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField(document, "Right", rect, "3");
                textField.DefaultValue = textField.Value;
                textField.Annotation.BorderStyle = borderStyle;
                textField.Annotation.AppearanceCharacteristics = appearanceCharacteristics;
                // add the right text box to the calculator
                calculator.Kids.Add(textField);

                // update the rectangle that defines the object position on PDF page
                rect.X += rect.Width;

                // draw the symbol '=' on the page
                graphics.DrawString("=", font, fontSize * 1.5f,
                    new Vintasoft.Imaging.Pdf.Drawing.PdfBrush(System.Drawing.Color.Black), rect,
                    Vintasoft.Imaging.Pdf.Drawing.PdfContentAlignment.Center, false);

                // create the calculator program written on JavaScript
                System.Text.StringBuilder javaScriptCode = new System.Text.StringBuilder();
                javaScriptCode.Append("var left = this.getField('Calculator.Left');");
                javaScriptCode.Append("var right = this.getField('Calculator.Right');");
                javaScriptCode.Append("var result = this.getField('Calculator.Result');");
                javaScriptCode.Append("result.value = left.value + right.value;");
                Vintasoft.Imaging.Pdf.Tree.PdfJavaScriptAction calculatorProgram =
                    new Vintasoft.Imaging.Pdf.Tree.PdfJavaScriptAction(document, javaScriptCode.ToString());

                // update the rectangle that defines the object position on PDF page
                rect.X += rect.Width;

                // create the result text box
                textField = new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField(document, "Result", rect);
                textField.IsReadOnly = true;
                textField.Annotation.BorderStyle = borderStyle;
                textField.Annotation.AppearanceCharacteristics = appearanceCharacteristics;
                // set a program that will calculate value of result field
                textField.AdditionalActions =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormFieldAdditionalActions(document);
                textField.AdditionalActions.Calculate = calculatorProgram;
                // specify that calcualtor program must be executed when page is opened
                textField.Annotation.AdditionalActions.PageOpen = calculatorProgram;
                // add the result text box to the calculator
                calculator.Kids.Add(textField);

                // add result field to the calculated fields (calcualtion order)
                // of the document interactive form fields
                document.InteractiveForm.CalculationOrder =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormFieldList(document);
                document.InteractiveForm.CalculationOrder.Add(textField);

                // add field group to the document
                document.InteractiveForm.Fields.Add(calculator);

                // add annotations, associated with field group, to the page
                page.Annotations = new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document);
                page.Annotations.AddRange(calculator.GetAnnotations());

                // update appearance of field group
                calculator.UpdateAppearance();
            }

            // save the document
            document.Save(filename);
        }
    }



    Иерархия наследования
    Требования

    Целевые платформы: .NET 9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5

    Смотрите также
